How is the ATLAS detector preparing for the future? When the CERN accelerator complex switched off in December 2018, ATLAS scientists and technicians promptly got to work opening the shaft leading from ground level to the underground ATLAS cavern, as well as opening up the detector itself. They will be maintaining and upgrading the detector over the next two years, the time CERN has allocated for a technical break called Long Shutdown 2 (LS2). Some of the improvements are part of the upgrade of the Large Hadron Collider (LHC), the High-Luminosity LHC (HL-LHC), set to run from 2026. The upgrade will greatly increase the rate of particle collisions, bring higher readout rates and create more opportunities for physics discoveries.

ATLAS is the largest LHC experiment. Installed between 2003 and 2008, it aims, like CMS, to understand the properties of the Higgs boson and search for new physics.

New not-so-small wheels

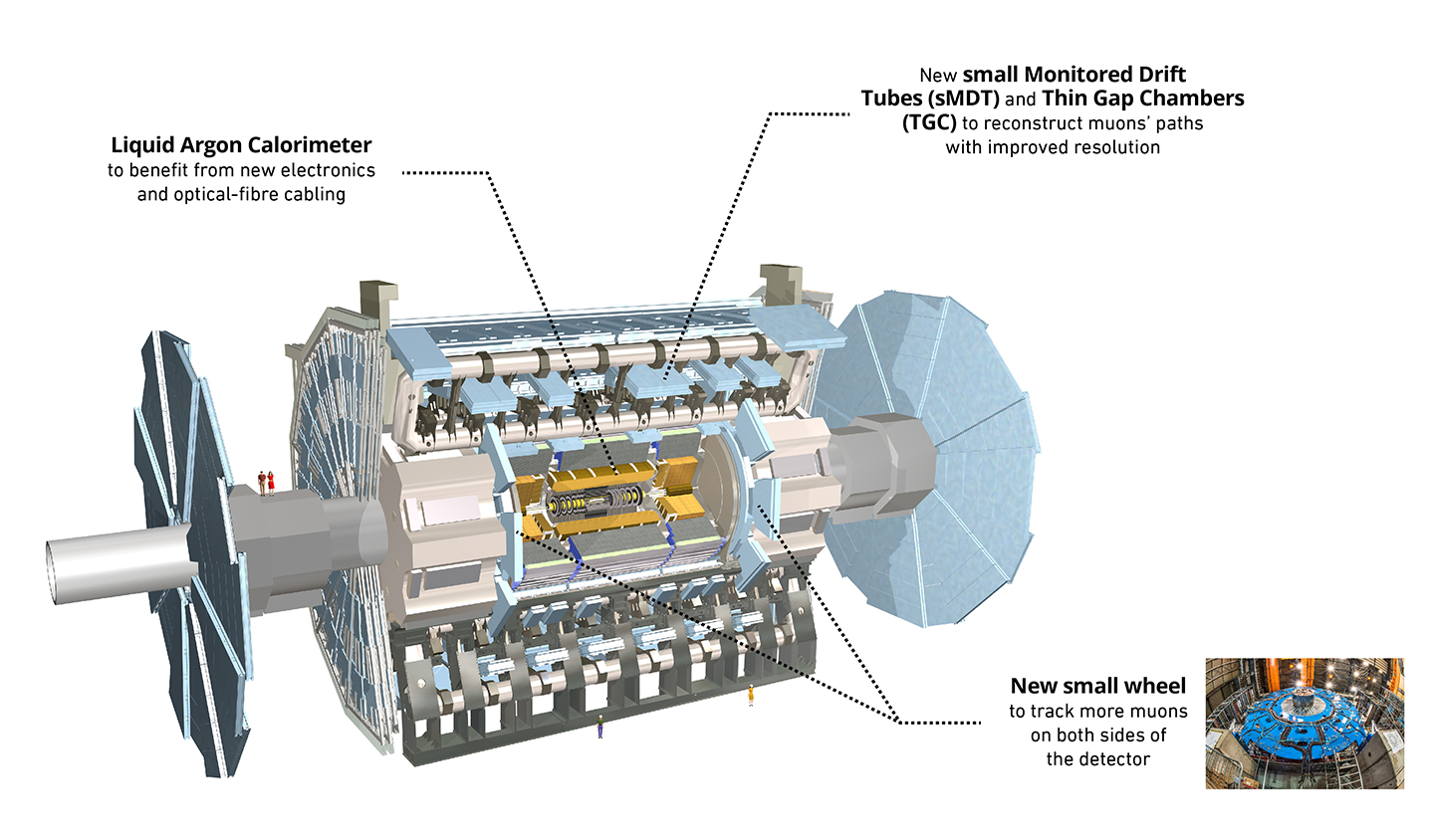

A major improvement to the experiment will be the installation of two new wheel-shaped detectors to track particles called muons. Muons can be thought of as heavier cousins of electrons and pass through the inner parts of the detector with little disturbance. If you imagine the detector as an onion, the muon spectrometer is the outer skin. Muons that speed away at angles smaller than 40 degrees from the beam direction are measured by a series of three layers of subdetectors, the innermost of which is known as the small wheel – because it is “only” 9.3 metres in diameter.

The new wheels will improve ATLAS’s triggering capabilities and will be able to cope with the higher muon rates expected from the HL-LHC. Each wheel consists of 16 wedges, or sectors, covered with layers of detector chambers known as micromegas (MM) and small-strip thin-gap chambers (sTGC). Both MMs and sTGCs have excellent precision tracking capabilities, at the level of 100  micrometres, and the very good response time needed to uniquely identify the collision time.

Assembly is currently taking place on the surface and the wheels will then be transported to ATLAS and lowered through the shaft to the detector. One of the existing small wheels was brought to the surface last week and the first new wheel is scheduled to enter the ATLAS cavern in spring 2020.

Remodelling ATLAS inside and out

Linked to the upgrades of the muon detection system is the addition of 16 new stations to improve ATLAS’s capability to detect muons in the region between the barrel and the endcaps. The stations contain gas-filled small monitored drift tubes (sMDT) and resistive plate chambers (RPCs). Physicists can track muons using the trail of electrically charged particles caused by the muons passing through the gas. The reconstruction of the muons’ paths will be improved thanks to sMDTs with a smaller diameter and new-generation RPCs with reduced electrode thickness.

Another major task happening during LS2 is the replacement of some components of the Liquid Argon Calorimeter’s (LAr) front-end electronics. This will improve ATLAS’s ability to preserve important signals coming from electrons and photons. On top of that, the upgrade of the trigger and data-acquisition systems will prepare the experiment for the HL-LHC.

In parallel to work on the detector, construction work is also continuing apace around ATLAS on the surface and underground, in preparation for the HL-LHC. A 62-metre-deep shaft has just been completed and civil engineers are now busy digging a service cavern and galleries for new equipment.

While many of ATLAS’s upgrades and installations will take place during Long Shutdown 3 (LS3), which is scheduled to begin in 2024, the activities taking place over the next two years will make it a better performing detector, ready to take data when the LHC restarts in 2021.

Read more in “ATLAS upgrades in LS2” in the latest CERN Courier, ATLAS’s news summary, and LS2 highlights from ALICE, CMS and LHCb.

More photos from ATLAS are available on CDS:

In 2005, the European Commission adopted a European Charter for Researchers and Code of Conduct for the Recruitment of Researchers. To date, 1119 organisations have endorsed the Charter and Code (C&C) principles and a further 455 are “acknowledged institutions”, a list to which CERN’s name was added in December 2018. This date was also when CERN won the ‘HR Excellence in Research’ Award in the framework of the Human Resources Strategy for Researchers (HR4SR). The award followed several months of work to complete the extensive application process, involving multiple actors and stakeholders throughout the Organization. This began with a survey to evaluate to what extent CERN implements each of the 40 principles of the Charter and Code, further to which the CERN C&C Focus Group carried out a comprehensive gap analysis covering some key HR themes. Key points that CERN committed to follow up were collated in a clear action plan, submitted as part of the application, on the basis of which the Organization will be regularly audited and monitored to ensure compliance with the Code.

For James Purvis, head of CERN’s Human Resources department, this is an important step forward for the Organization:

We are extremely proud to have obtained this award. It is a key milestone – not only in the recognition of CERN’s HR practices, but it may also become critical in the future in CERN’s ability to succeed in future EC project submissions.

CERN is deeply committed to the principles and ethos of the European Charter for Researchers and Code of Conduct for the Recruitment of Researchers, whose natural integration in CERN’s Human Resources and management processes are already contributing greatly towards promoting CERN as an attractive employer in Europe.

Find out more about the content of CERN’s application for the HR Excellence in Research award and what this means for the Organization at:

https://hr-dep.web.cern.ch/content/cern-and-eu-charter-and-code

Bruno Nicolai, former coordinator of the installations at LIL (LEP Injector Linacs) and EPA (Electron Positron Accumulator) passed away on 11 November 2018. Just a few hours later, his wife, Annamaria Vecchiatti, also passed away. Bruno and Annina (this is the affectionate nickname Bruno used to call his wife) got married in 1954. Their entire life is a love story, right through to their last day together.

Bruno was born in Ficarolo (Rovigo, Italy) in 1930. Besides his wife and his two daughters, Bruno actually had another big love: CERN. A mechanical engineer, Bruno arrived at CERN in 1958 and became a staff member in 1959. He obtained an indefinite contract in 1963.

When Bruno arrived at CERN, the Laboratory was in the process of giving birth to big human adventures and Bruno was passionate about interacting with the physicists, creating new experiments, and finding unexplored technical solutions to solve issues and allow scientists to carry out their experiments. At the end of 1958, Bruno took part in the g-2 experiment, which aimed at measuring the muon anomalous magnetic moment.

After the g-2 experiment, Bruno continued to develop his career: first in the SC (Synchro Cyclotron) division, and then in the MPS (Machine Proton Synchrotron) division, becoming a real expert in magnets and, in particular, in injection and ejection systems. During this period, he was able to use his wide range of knowledge, working equally successfully with high voltage equipment, hydraulics, high vacuum, controls and civil engineering. He joined the PS ejection team in 1967 and was responsible for the “Straight Flush” kicker system. In 1974, he became KM (Kicker Maintenance) section leader in the Acceleration and Ejection group under D. Bloess in the PS Division. In the 1980s, he joined the LPI (LEP Pre Injectors) group and became responsible for the coordination of all installations going into the LIL (LEP Injector Linacs) and EPA (Electron Positron Accumulator) buildings.

In the same years, he was also an active member of the “Joint Advisory Rehabilitation and Disability Board”. Bruno handled this delicate task with his usual professionalism and passion.

Bruno retired in 1990 but his passion for CERN didn’t stop and actually found another way to manifest itself: through his activity as a CERN official guide. While his health was becoming ever more precarious, letters of appreciation from schools and groups were piling up in his personal book of memories.

Bruno had a wonderful career at CERN, largely because Annina always supported him through all the difficulties, the long nights spent at CERN, the frequent trips and, towards the end of Bruno’s life, through a series of serious illnesses that never left him until he passed away.

Bruno left a mark of love in all of us, his friends, colleagues and people who had the chance to meet him. In spite of all the tough challenges life presented him with, he never lost his smile, not a fake one but a real, heartful smile. He used to make jokes about his age, swapping the figures around when it would make him younger (e.g. 75 would become 57) and he was indeed still very young when he passed away at the age of 88 (no convenient swap available, he used to laugh about it). Annina and Bruno will be sorely missed and always remembered together. A perfect circle of love and passion that makes life seem worth living.

His colleagues and friends

For three years now, CERN has been organising visits of women scientists and engineers to local schools on the occasion of the International Day of Women and Girls in Science celebrated annually on 11 February. This year, new partnerships with the Science Outreach Department of the Swiss Federal Institute of Technology in Lausanne (EPFL) and the University of Geneva (UNIGE) Scienscope, gave a new scope to the project.

From 11 to 15 February, 57 very enthusiastic volunteers from CERN, UNIGE and EPFL gave 150 talks, reaching over 3100 pupils!

They spoke about their background, revealed some mysteries of science and conducted small demonstrations in front of very curious school pupils. The idea behind the project is to have them act as female role models to change the perception towards scientific and engineering professions. They contributed in changing sexist stereotypes, enabling young girls to imagine themselves as researchers, explorers, innovators, engineers or inventors.

______

If you are interested in participating get in contact with Local engagement.

Big changes are under way at the Super Proton Synchrotron (SPS). One of the major operations is the upgrade of the machine’s acceleration system. “The beams in the High-Luminosity LHC will be twice as intense, which requires an increase in radiofrequency power,” explains Erk Jensen, leader of the Radiofrequency (BE-RF) group. One aspect of the LHC Injectors Upgrade (LIU) project is therefore bringing the SPS acceleration system up to standard.

Erk Jensen shows us around the huge Building 870, just behind the CERN Control Centre on the Prévessin site, which is a hive of activity. Everywhere you look, teams are pulling out cables, unscrewing components and removing electronic modules. Dismantling is one of the main activities of this first phase of the Long Shutdown. No fewer than 400 km of cables are being removed at Points 3 and 5 of the SPS, for example.

In the large halls, we can see the huge power converter and amplifier installations that supply the radiofrequency (RF) accelerator cavities of the SPS. The amplifiers use an electronic tube technology dating back to the 1970s and 80s, as the SPS was commissioned in 1976 and transformed into a proton-antiproton collider in 1981. Two tube systems exist alongside each other, each producing 2 megawatts of power.

To supply the power needed for the High-Luminosity LHC, a team from the RF group, headed by Eric Montesinos, working with the firm Thales Gérac, has developed a new system that uses solid-state amplifiers, similar to those that were recently developed for the SOLEIL and ESRF synchrotrons. The transistors for these amplifiers are assembled in sets of four on modules that supply 2 kilowatts, much less power than was delivered by the electronic tubes (between 35 and 135 kilowatts). But a total of 2560 modules, i.e. 10 240 transistors, will be spread across 32 towers. The power from 16 towers will be combined via an RF power combiner. The whole system will be able to provide RF power of two times 1.6 megawatts to the cavities.

This system is much more flexible, since the power is distributed across thousands of transistors,” observes Eric Montesinos. “If a few transistors stop working, the RF system will not stop completely, whereas if one of the tubes failed, we had to intervene quickly.” In addition, it’s much easier to change a module, especially since electronic tubes in this frequency range are an endangered species, accelerators being among the last applications of the technology.

Development of the solid-state amplifier system began in 2016. A team from the RF group worked in collaboration with scientists from Thales Gérac, and many tests and adjustments had to be carried out. Power electronics are subject to significant thermomechanical effects, so the technique for fitting the transistors onto the plate of the module, to take one example, turned out to be a particularly tricky aspect to get right. After several dozen complex prototypes had been produced, the work finally came to a successful conclusion last year: the first tower housing 80 transistor modules operated for 1000 hours, passing the validation tests in August. This was a great success that allowed series production to begin while the tests continued.

The structures, i.e. the 32 towers, have already been installed in a new room, giving it the air of a science-fiction movie set. Only one of them so far is equipped with its RF power modules, offering a taste of the even more futuristic look that the room will have in a few months’ time. The modules will be delivered as of May, continuing through to the end of the year; all of them will be tested on a specially designed test bench before being installed in the towers. Some painstaking work faces the teams that will install all the modules.

In parallel, the cavities have been removed from the tunnel. The SPS has four 200 MHz cavities: two formed of four sections, and two of five sections, each section measuring four metres. “To accelerate more intense beams, we need to reduce the length of the cavities in order to maintain a sufficiently strong electromagnetic field along their whole length,” explains Erk Jensen. The teams will therefore reassemble the sections in order to form a total of six cavities: two of four sections and four of three sections.

At the same time, the beam control system is being replaced. The Faraday cage, which houses the electronic racks for the beam control system, has been completely emptied, ready to be fitted with the latest electronics and new infrastructure (lighting, cooling and ventilation systems, among others). Finally, an improved system for eliminating parasitic resonances will be installed, based on HOM (higher order mode) couplers, which were tested during the last run.

The teams must stick to a tight schedule, comprising all the dismantling work, the start of installation later in 2019, and numerous tests and commissioning tasks in 2020.
